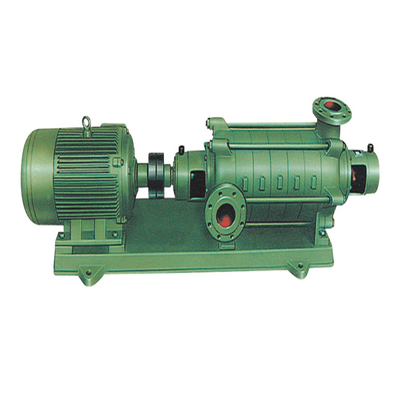

Name: High Efficiency LYSON Hydraulic Power Pack Water Centrifugal Pump Centrifugal Pump Horizontal Multistage Centrifugal Oil Pump
Brand: High Efficiency LYSON Hydraulic Power Pack Water Centrifugal Pump Centrifugal Pump Horizontal Multistage Centrifugal Oil Pump
SKU: LTSWA
Price: 399.00 USD
Availability: InStock
Rating: 4.5 (197 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: LTSWA

Pressure: High Pressure

Structure: Multistage Pump

Theory: Centrifugal Pump

Usage: Water

Power: Electric

Standard or Nonstandard: Nonstandard

Fuel: Other

Application: Other

Product name: Horizontal Multistage Centrifugal Oil Pump

Material: Cast Steel

Voltage: 220V/380V

Certificate: ISO9001:2008

Type: Watering

Warranty: 1 Year

Color: Green

Name: DC PUMP

Feature: High Efficiency

Motor: DC Motor

Основная информация

Сертификация: ISO9001:2008

Model Number: LTSWA

Оплата и доставка Условия

Packaging Details: Wooden reinforcement packaging, designed according to the size of the product packaging, to provide a guarantee for the product.

Характер продукции

Product details

Production Description:

Product Feature:

> High efficiency

> Stable working

> Good anti-cavitation performance

> Easy to maintaince

> Long life

Product Application:

LTSWA is applicable to transport clean water under 80℃ and liquids whose physical and chemical properties are similar to clean water.

> Industrial and mining enterprises

> Air-conditioning system

> City water supply

> Life water supply

Specification

Product Name:	LTSWA Horizontal Multistage Centrifugal Water Pump
Material:	Cast iron
Seal Material:	Graphite/ silicon carbide
Max. Flow:	191m3/h/ 841GPM
Max. Head:	292m
Max. Pressure:	29bar/421psi
Max. Working temperature:	80℃/176F
Max. rev:	2950rpm
Motor Power:	2.2kw~180kw
Voltage:	220V,380V
Motor:	AFT, 50hz/60hz
Available Connection:	Flange(EN1092-2,ISO7005-2)
Operated:	Electric
Application Scope:	Industrial and mining enterprises, air-conditioning system,city water supply, life water supply
Packaging Details:	Wooden box
Delivery details:	7-20 days after receiving payment
Brand:	LYSON or OEM

Detailed parameters

50 Hz	60 Hz	Q*H	Connection	Voltage	RO SYSTEM
LTSWA 4-4 / 0.75 KW	LQDLF 4-3 / 1.1 KW	2.0 t/h * 35m	Flanged	220V/380V/3Phase	6000 GPD
LTSWA4-4 / 0.75 KW	LQDLF 4-3 / 1.1 KW	2.5 t/h * 32m	Flanged	220V/380V/3Phase	9000 GPD
LTSWA4-4 / 0.75 KW	LQDLF 4-3 / 1.1 KW	3.5 t/h * 30m	Flanged	220V/380V/3Phase	12000 GPD
LTSWA8-4 / 1.5 KW	LQDLF 4-4 / 1.5 KW	5.5 t/h * 40m	Flanged	220V/380V/3Phase	18000 GPD
LTSWA8-4 / 1.5 KW	LQDLF 8-3 / 2.2 KW	7.0 t/h * 38m	Flanged	220V/380V/3Phase	24000 GPD
LTSWA 16-3 / 3 KW	LQDLF 8-3 / 2.2 KW	10.0 t/h * 40m	Flanged	220V/380V/3Phase	36000 GPD
LTSWA16-3 / 3 KW	LQDLF 16-2 / 4 KW	12.0 t/h * 38m	Flanged	220V/380V/3Phase	48000 GPD
LTSWA16-3 / 3 KW	LQDLF 16-2 / 4 KW	15.0 t/h * 34m	Flanged	220V/380V/3Phase	60000 GPD
LTSWA20-3 / 3 KW	LQDLF 20-2 / 4 KW	18.0 t/h * 37m	Flanged	220V/380V/3Phase	72000 GPD
LTSWA20-3 / 3 KW	LQDLF 20-2 / 4 KW	22.0 t/h * 33m	Flanged	220V/380V/3Phase	90000 GPD
LTSWA32-30-2 / 5.5 KW	LQDLF 32-20-2 / 5.5 KW	28.0 t/h * 38m	Flanged	220V/380V/3Phase	120000 GPD
