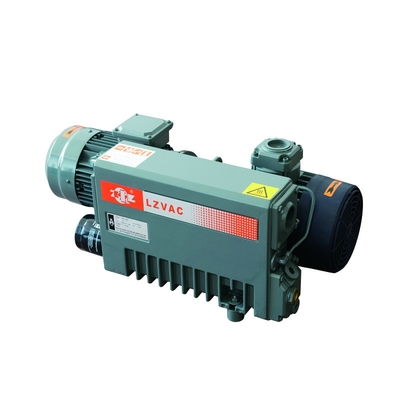

Other SV Series Oil Sealed Rotary Vacuum Pump Vane Vacuum Pump For CNC Router

XD series single stage vacuum pump:

Product Description:

SV (XD) single stage rotary vane vacuum pumps combining with many years of experience in vacuum engineering and the latest international vacuum technology developed to meet requirements of both the industry and the environment.

They are being used in all areas of vacuum engineering.

They are equally suited for both industrial production and research applications.

They may be used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots pumps or high vacuum pumps.

The comprehensive range (pumping speeds ranging from 10 to 750 m 3 / h) allows every customer to select the right pump for his particular needs.

Operation:

1.The pump should be placed on the flat position horizontally. The pump has screw holes used for fixing the pump at the bottom cushion block.

2.Please check the oil level before starting the pump. Fill oil to the oil window 3/4 position.

3.Electrical wiring should be carried out by a professional electrician, Vacuum pump standard 380v50hz three phase motor, please look at the motor nameplate.After completion of three phase asynchronous motor wiring must rotate to check the motor,running in the direction shown by the arrow .

4.Inlet pipe cross section size should not be less than the suction mouth size and link length as short as possible.Otherwise it will affect the efficiency.

5.If the pumped gas have impurities,steam or foreign matter,you need to install a vacuum filter on pump air inlet. You also can join an exhaust pipe if necessary, the exhaust pipe need to slope down.

6.The oil level must be check after startup,please insure the oil level in the oil window 3/4 place. When the pump is operating at high temperature, do not touch!

Scope of application:

1:Car industry

2:Food industry

3:Furnaces and plants

4:Laser technology

5:Medicinal technology

6:Metallurgy

7:Power engineering, long-distance energy

8:Space simulation

9:Vacuum coating

Vacuum packaging, drying, distillation, concentration, loading and unloading, and attract, vacuum forming, etc

 Packaging & Shipping

Packaging:

Standard export wooden cases packing

Shipment:

Sea transport /Air transport ( DHL ,TNT , Fedex... )

Delivery time:

15 working days

 Why choose us?

1.We are a factory focused on TRD series direct vacuum pump, XD series single-stage vacuum pump, 2X series belt type vacuum pump for more than 15 years.

2.We are Assessed 2 years Gold Supplier by Alibaba.

3. As per your application and requirements, product can be customized to supply .

4. Our sales engineer are here, for your raising question any time.

5. Best production capability, best quality control, best service.

6.  24-hours standby, Critical listening your every suggestion or demand and feedback ASAP.

Maintenance:

Factory configuration oil - CV - AH200 high vacuum oil, must use the ISO VG 100 viscosity grade of vacuum pump oil,

vacuum pump operation must ensure that the oil level in the oil window height of 1/2 3/4, regularly check the oil level and oil pollution, oil change.

Company information:

Wenling Shiqiao Vacuum Machinery Factory was established in 2001, specialized in producing TRD series direct vacuum

pump, XD series single-stage vacuum pump, 2X series belt type vacuum pump, etc.

Over the years, our company has been committed to producing high performance products. We are concerned with the design,

development and production of vacuum pump. Our products are widely used in chemical industry, medicine,

equipment leakage, vacuum packaging, vacuum heat treatment, vacuum coating and so on.

We win high admiration and are widely trusted at home and abroad.

Customers' satisfaction is our pursuance. We always uphold professional, performance, good quality and good faith to provide

high quality products and services for customers. Our business objective is: "Quality First, the user is supreme."

We will meet every challenge with our own wisdom and efforts.

Excellent quality, perfect service is a bridge between us. We sincerely hope to advance hand in hand together with fellow

merchants.

Factory picture:

Q1.How long for production?

A1.25 working days for 20 GP, 35 days for 40HQ.

Q2.What color available?

A2.Colour is option. Change color no need to additional charges.

Q3.What's the minium quantity(MOQ)?

A3.Less than 5 piece or 2 CBN shipping companies refused to transport.

Q4.How can i get a sample to check your quality?

A4.After price confirmation,you can require for samples to check our quality. If you need the samples, we will charge for the sample cost .But the sample cost can be refundable if your order is large enough.

Q5.How long can I expect to get the sample?
A5.3-5 working days for preparing samples.

Q6.How long shipping time?

A6.Depending on your desired arrival place.

Q7.How can i know more detail about you produce?

A7.Welcome to inquire us!
